Advanced Technology Light Acquisition System

ATLAS C4EYE

Military & Surveillance

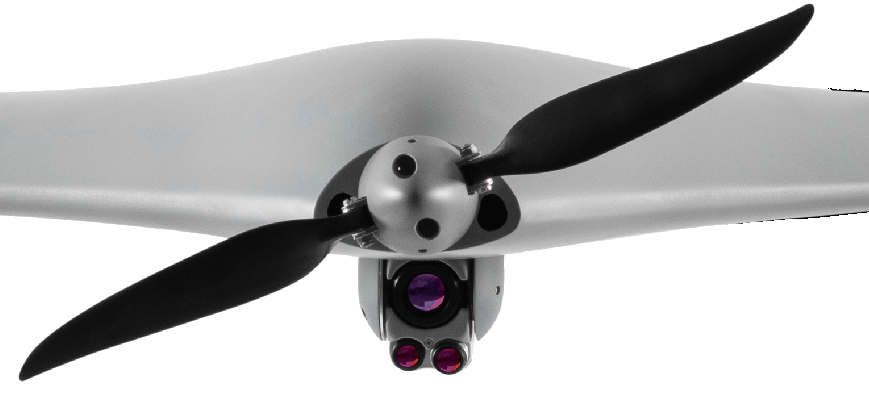

The ATLAS C4EYE is currently the most compact of the C-ASTRAL UAS family. The hand launched system can carry EYE-X HD stabilized gimbal camera. The ATLAS excels with a class leading endurance and modularity that enables quick reconfigurations and multiple functionality in a safe, compact, light, hand launched package, supports by a new avionics and guidance solution that is completely compatible with the current BRAMOR family ground segment.

Wingspan                   155cm
Length                        82 cm
Weight (MTOW)           2.6 kg
Sensor                        EYE-X HD EO/IR Zoom x6.6 and 2x digital
                                  Thermal Resolution 640x480
Propulsion                   C-Astral Brushless Electric
Cruise Speed               16 m/s
Take-off                      Hand launched or high start
Landing                       Parachute /Belly
Service ceiling              up to 5000 msl
Datalink range             15 km
Endurance                   up to 70 minutes
Flight ready                 2 minutes
Operator Need             one
Transportation             Milspec backpack 15 kg

  • Handheld launcher

  • Handheld launcher for Atlas UAV. Enables the operator to have quick and reliable launches.

    • Weight 4.6 kg
    • Launching force 1000 N
    • Dimensions:
      • W 0.8 m
      • L 0.9 m
      • H 0.3 m
    • Ergonomically designed
    • Quick assembly in less than two minutes
  • EYE-X HD2 Gimbal

  • Belly mount

    Dual visible camera 400nm - 700nm
    > Resolution: 1280 x 720
    > Zoom: 20x + 2x digital (total 40x) continuous
    > HFOV: 60° WFOV, 3° NFOV, 1,5° DFOV

    Thermal camera
    >     LWIR uncooled 8-12 μm
    > Resolution: 640 x 480 (BH/WH toggle)
    > Zoom: 4x digital
    > HFOV: 32° WFOV, 8° DFOV
    > Gyro + Software continuous stabilization

    IR Laser illuminator available at 720nm or 850nm (optional)

    Fonctions
    >      Target tracking, Pursuit mode and Target Geo-Location
    > NETD better than 0.05°C
    > On-board and/or Off-board Recording

    Video Transport Stream
    >     MPEG-2  ISO/EIC 13818-1
    > STANAG 4609, MISB ST 1402.1
    > KLV ST 0601.4
    >UAS Datalink Local Data Set

  • Backpack

  • Easy transportation with a water-resistant rugged mil-spec backpack.

    • Made from CORDURA rugged fabric
    • Rain resistant
    • Mil-Spec material: Mil-C-43734, C4
    • Ergonomically designed
    • Adjustable shoulder straps
    • Lumber area padding
    • Hip belt
    • Fits additional rugged case for protection
  • TRACK - M Antenna

  • Light antenna system compatible with all C-ASTRAL SYSTEMS for extended range.

    • Rugged tripod mount
    • Easy and quick assembly
    • Different frequency options
    • Extended range up to 40 km
  • STROBE LIGHTS

  • Anti collision strobe lights and navigation lights (RED/GREEN)

    • Low power consumption
    • optional IR beacons for stealth night operation,  only visible with night vision equipment. Optionally several IR frequencies are available.

Handheld launcher for Atlas UAV. Enables the operator to have quick and reliable launches.

  • Weight 4.6 kg
  • Launching force 1000 N
  • Dimensions:
    • W 0.8 m
    • L 0.9 m
    • H 0.3 m
  • Ergonomically designed
  • Quick assembly in less than two minutes

Belly mount

Dual visible camera 400nm - 700nm
> Resolution: 1280 x 720
> Zoom: 20x + 2x digital (total 40x) continuous
> HFOV: 60° WFOV, 3° NFOV, 1,5° DFOV

Thermal camera
> LWIR uncooled 8-12 μm
> Resolution: 640 x 480 (BH/WH toggle)
> Zoom: 4x digital
> HFOV: 32° WFOV, 8° DFOV
> Gyro + Software continuous stabilization

IR Laser illuminator available at 720nm or 850nm (optional)

Fonctions
>  Target tracking, Pursuit mode and Target Geo-Location
> NETD better than 0.05°C
> On-board and/or Off-board Recording

Video Transport Stream
> MPEG-2  ISO/EIC 13818-1
> STANAG 4609, MISB ST 1402.1
> KLV ST 0601.4
>UAS Datalink Local Data Set

Easy transportation with a water-resistant rugged mil-spec backpack.

  • Made from CORDURA rugged fabric
  • Rain resistant
  • Mil-Spec material: Mil-C-43734, C4
  • Ergonomically designed
  • Adjustable shoulder straps
  • Lumber area padding
  • Hip belt
  • Fits additional rugged case for protection

Light antenna system compatible with all C-ASTRAL SYSTEMS for extended range.

  • Rugged tripod mount
  • Easy and quick assembly
  • Different frequency options
  • Extended range up to 40 km

Anti collision strobe lights and navigation lights (RED/GREEN)

  • Low power consumption
  • optional IR beacons for stealth night operation,  only visible with night vision equipment. Optionally several IR frequencies are available.
