EYE-X HD4

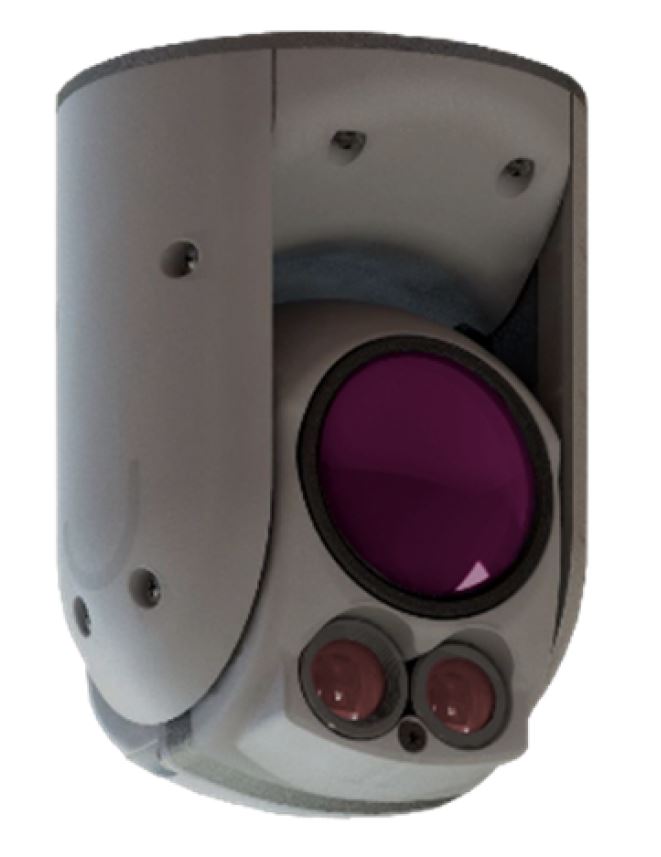

The EYE-X HD 4 gimbal brings the capabilities of much larger UAS systems to the tactical level.

Equipped with high-resolution EO and IR sensor with an optional laser illuminator, capable of detecting, tracking, following and geo-locating targets, objects, features and infrastructure, day and night.

The stabilized gimbals provides electro optical CCD and state of the art un-cooled micro-bolometer based thermal imaging capabilities with the optional laser illuminator. Payload EYE X-HD4 is retractable and protected for takeoff and landing.

The payload is also capable of EO and Thermal mapping with stabilized - down looking function.

Features:

EO:

  • Resolution: 1280 x 720
  • zoom: 20x optical + 2x digital (total 40x) continuous

Thermal camera:

  • LWIR uncooled (8 -12µm)
  • Resolution: 640 x 480 (BH/WH toggle)
  • zoom: 4x digital continuous
  • HFOV 18° W.FOV-4,5° DFOV continuos
  • Black hot, White hot, false color IR modes

Gimbal:

  • 2-axia Gyro continuous stabilization
  • 360 ˚ Roll coverage, +180˚ to -180˚
  • Pitch coverage,-45˚ to +80˚
  • Angular speed 105˚/s

Imaging

  • De rotation- electronic image stabilization
  • Target tracking,
  • Pursue mode,
  • Geo-Location
  • point to coordinate (CEP ≤ 5 m)

IR Laser pointer

  • 650 nm 5 mW Class IIIa or
  • 850nm 5mW Class IIIb

Recording

  • On-board / Off-board Recording
  • microSD card size 128 GB (Maximum)
  • Snapshot
  • Video embeded KLV metadata

Encryption (optional)

  • On-board video recording encryption AES 128
  • RSA 4096 with AES 256 encryption

Environment

  • Operating temperature -20˚C to +55˚C

VIDEO STREAMING PROTOCOLS

  • H.264 compression

Transport Stream

  • MPEG-2 ISO/IEC 13818-1
  • KVL metada
  • MISB ST 1402.1
  • STANAG 4609
  • STD 0601.4 UAS Datalink Local Data Set
  • RTP/AVP RFC 6184 – RTP Payload Format for H.264 Video


GEO-LOCATION

Geolocation of the UAV and its target on ground Station overview picture

Video Picture with target Location


40X EO ZOOM

A small yet capable camera that provides exceptional magnification. Two EO imagers with different FOV and added digital zoom

Zoom 1Zoom 2Zoom 3

4X THERMAL IR IMAGER

LWIR uncooled thermal imager with high contrast and detail works in BLACK HOT, WHITE HOT and FALSE COLOR mode.
Thermal imageWhite hot
